Day by day traffic is increasing on one of the websites managed by the Nautilus production support team. Therefore, the team has observed a degradation in website performance. Following discussions about this issue, the team has decided to deploy this application on a high availability stack i.e on Nautilus infra in Stratos DC. They started the migration last month and it is almost done, as only the LBR server configuration is pending. Configure LBR server as per the information given below:

Tasks:
1 - Install nginx on LBR (load balancer) server.
2 - Configure load-balancing with the an http context making use of all App Servers. Ensure that you update only the main Nginx configuration file located at /etc/nginx/nginx.conf.
3 - Make sure you do not update the apache port that is already defined in the apache configuration on all app servers, also make sure apache service is up and running on all app servers.

ssh loki@stlb01
sudo su
dnf install nginx -y
systemctl restart nginx
systemctl status nginx

Next determine which port Apache is using on stapp01 - its 5001. Double check this is the same for stapp02 and stapp03.

ssh tony@stapp01
sudo su
netstat -tulpn | grep httpd - netstat isnt found so use ss
ss -tulpn | grep httpd
tcp   LISTEN 0      511          0.0.0.0:5001       0.0.0.0:*

Return back to stlb001 and make the nessecary changes in the nginx.conf file.
Further information can be found at: https://nginx.org/en/docs/http/load_balancing.html

vi /etc/nginx/nginx.conf

#Within the http section add the following:
upstream appservers {
        server stapp01:5001;
        server stapp02:5001;
        server stapp03:5001;
    }

#Within the server section add the following:
location / {
    proxy_pass http://appservers;  <-- This must match the upstrean name
}

esc
:wq

nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

systemctl restart nginx

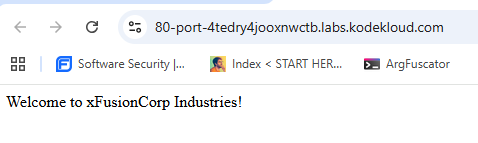

Working !!
